How mizerReef extends mizer

Overview

mizerReef is an extension package for mizer that adds three ecological processes to a standard multispecies size-spectrum model, all motivated by structurally complex habitats such as coral reefs:

• predation refuge — structural complexity lets some prey hide from some predators, reducing the encounter and mortality rates that would otherwise apply,
• algae and detritus — two unstructured (not size-structured) benthic resource pools that herbivorous and detritivorous species feed on,
• senescence mortality — an extra size-dependent mortality term representing non-predation death close to a species’ maximum size.

The package uses the mechanisms described in vignette("creating-extension-packages", package = "mizer"):

Extension mechanism	Used for
.onLoad + registerExtension()	Register the package with mizer so params objects know which extensions they need
S4 marker classes + S3 dispatch	Define mizerReef/mizerReefSim so reef-specific methods run automatically
project* rate methods	Override Encounter, FeedingLevel, PredMort and Mort to add refuge, satiation, and senescence effects
setComponent()	Add algae and detritus as scalar dynamical components
utils::upgrade()	Migrate objects saved with older mizerReef versions

All of these are wired together inside newReefParams(), the single entry point for building a reef model.

The mizerReef marker class

mizerReef defines two S4 marker subclasses:

setClass("mizerReef",    contains = "MizerParams")
setClass("mizerReefSim", contains = "MizerSim")

These classes carry no extra slots — all reef-specific state (refuge, algae and detritus parameters) lives in other_params(params). The classes exist purely to trigger S3 dispatch, exactly as described for marker classes in vignette("creating-extension-packages", package = "mizer").

Registration via .onLoad

.onLoad <- function(libname, pkgname) {
    mizer::registerExtension(pkgname, requirement = "sizespectrum/mizerReef")
}

This registers mizerReef with mizer’s extension chain as soon as the package is loaded. newReefParams() then records the chain and coerces the result to the marker class at the very end of construction:

params@extensions <- mizer::getRegisteredExtensions()
params <- mizer::coerceToExtensionClass(params)

Recording the chain in params@extensions is what lets project() produce a mizerReefSim automatically (via MizerSim()’s own call to coerceToExtensionClass()), and what lets readParams() restore the correct class — and warn about missing or outdated extensions — when a saved object is reloaded in a later session.

A known gap: bundled example models and multiple extensions

mizerReef ships two pre-built example models as package data (caribbean_10_model, caribbean_3_model). .onLoad also contains a makeActiveBinding() call, scoped to caribbean_3_model only, intended to re-coerce that object to the correct class if a second mizer extension is loaded alongside mizerReef, since a bundled .rda is fixed at save time and can’t know in advance what else will be loaded in the same session. In the current mizer/mizerReef versions this mechanism does not fire — exists() on the bundled object inside .onLoad is always FALSE at that point, so the active binding is never installed. This is not mizerReef-specific: the identical dead-code pattern exists in mizerShelf’s own current source for its bundled NWMed_params object.

For everyday single-extension use this is harmless, since both bundled objects already carry the correct class from when they were saved. It would only matter if you loaded mizerReef together with a second dispatching extension on one of these two specific objects — for example, the mizerMR combination shown in vignette("using-multiple-resources"). That combination does work (mizer’s extension chain, a separate mechanism, correctly promotes the object’s class when both extensions are registered), but the underlying .onLoad dead-code gap described above is still unfixed upstream; see inst/to-do-list.txt for the current state.

Methods dispatched on mizerReef

Method	What it adds
projectEncounter.mizerReef()	Recomputes encounter for refuge-blocked predators using vulnerability-reduced prey abundance
projectFeedingLevel.mizerReef()	Gives predators without a satiation response unlimited intake capacity
projectPredMort.mizerReef()	Discounts predation mortality from refuge-blocked predators by prey vulnerability
projectMort.mizerReef()	Adds senescence mortality on top of the standard mortality
getBiomass.mizerReefSim()	Adds algae and detritus biomass to the species biomasses
removeSpecies.mizerReef()	Updates the algae/detritus encounter-rate matrices rho
upgrade.mizerReef()	Migrates objects created with an earlier mizerReef 2.x layout to the current one (automatic; for mizerReef 1.x objects, see upgradeReefParams() instead)

Every one of these methods calls NextMethod() at least once, so multiple dispatching extensions can modify the same rate or generic without silently overwriting each other’s contribution — provided every extension involved follows the same convention. This is not automatic just because a package touches a mizer model: mizer still supports an older, non-chaining mechanism (mizer::setRateFunction()) that swaps in a single named function for a rate, with no dispatch at all, and a params object uses one mechanism or the other for a given rate, never both. See the caveat in vignette("using-multiple-resources") for a concrete example (mizerReef’s dispatching encounter-rate chain versus therMizer’s non-chaining setRateFunction() approach, and why combining them does not currently give you both effects together). The next two sections look at mizerReef’s own rate methods in detail, because they illustrate both the easy case (a purely additive modification) and a harder case that needed more thought.

Predation refuge: a multiplicative rate modification

Three species parameters control how refuge affects a species:

• refuge_user — does this species hide in refuge at all?
• blocked_pred — is this species’ foraging hindered by refuge (i.e. is it a predator that struggles to reach prey hiding in structure)?
• satiation — does this species show a satiation response, or can it always find as much food as it can physically ingest?

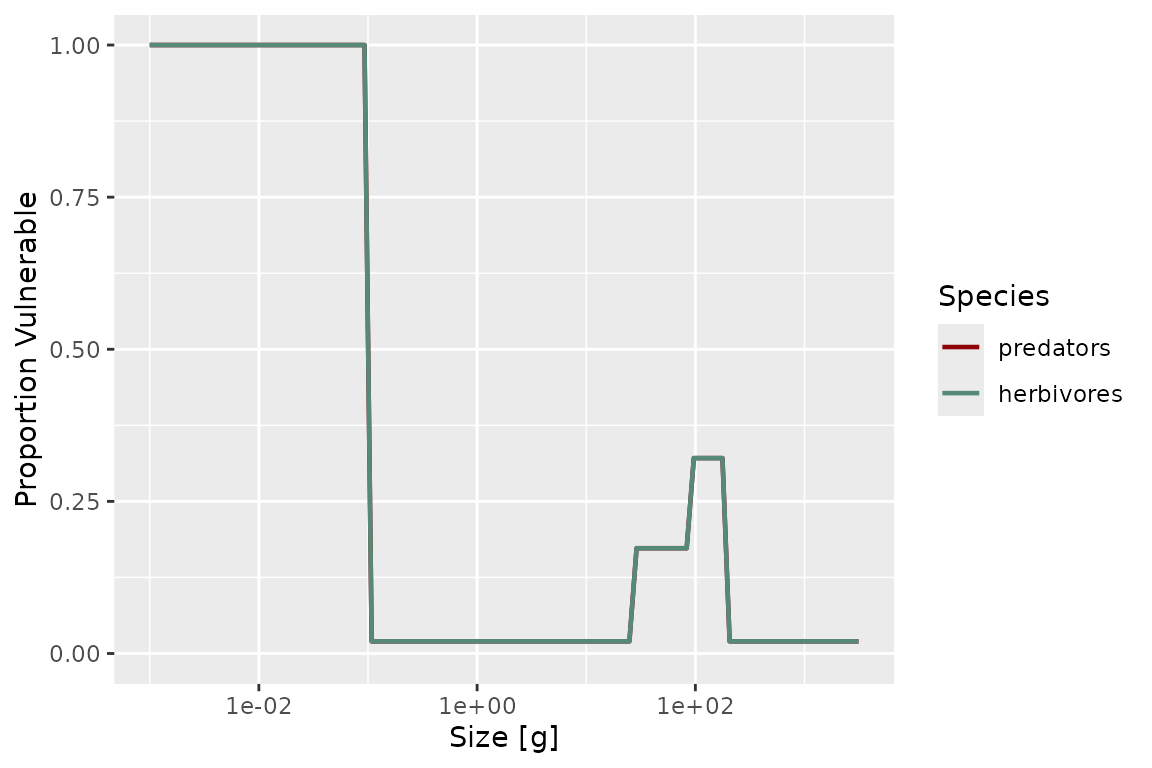

reefVulnerable() computes, for each species and size, the proportion of individuals not protected by refuge — using one of four profile methods ("sigmoidal", "binned", "competitive", "noncomplex") set with setRefuge(). "competitive" is the most detailed: refuge is a limited resource that same-size individuals compete for, so vulnerability depends on the actual local density of competitors at each time step, not just on size.

plotVulnerable(params)

Why this can’t be a simple additive override

mizerShelf’s getBiomass.mizerShelf() adds detritus and carrion biomass on top of the standard result — a purely additive modification that a single NextMethod() call expresses perfectly. Predation refuge is different: it discounts the prey available to blocked_pred predators before the encounter and predation-mortality integrals are computed, i.e. it enters multiplicatively, and only for a subset of predators. A single NextMethod() call cannot express “recompute this integral with different inputs for these rows only”.

projectEncounter.mizerReef() and projectPredMort.mizerReef() solve this by calling the rate calculation twice — once with unmodified inputs to get the standard result, and once more with a vulnerability-modified input to get the correction — and then combining the two by predator row. Both calls go through NextMethod(), so both stay fully composable:

projectEncounter.mizerReef <- function(params, n, n_pp, n_other, t = 0, ...) {
    blocked_pred <- params@species_params$blocked_pred == TRUE
    if (!any(blocked_pred)) {
        return(NextMethod())
    }
    vulnerable <- reefVulnerable(params, n, n_pp, n_other, t,
        new_rd = reefDegrade(params, n, n_pp, n_other, t, ...))

    # Standard encounter (used as-is for predators unaffected by refuge)
    encounter <- NextMethod()
    # Encounter recomputed with vulnerability-reduced prey abundance (used
    # for predators whose foraging is blocked by refuge). Reassigning the
    # formal `n` and then calling NextMethod() bare sends the reduced prey
    # abundance down the full extension chain.
    n <- vulnerable * n
    encounter_vul <- NextMethod()
    encounter[blocked_pred, ] <- encounter_vul[blocked_pred, ]
    encounter
}

projectPredMort.mizerReef() follows the same pattern, using the linearity of the predation-mortality calculation in pred_rate to isolate the contribution of blocked_pred predators by zeroing out every other predator’s row before recomputing:

projectPredMort.mizerReef <- function(params, n, n_pp, n_other, t = 0,
                                      pred_rate, ...) {
    blocked_pred <- params@species_params$blocked_pred == TRUE
    if (!any(blocked_pred)) {
        return(NextMethod())
    }
    vulnerable <- reefVulnerable(params, n, n_pp, n_other, t,
        new_rd = reefDegrade(params, n, n_pp, n_other, t, ...))

    pm <- NextMethod()
    pred_rate[!blocked_pred, ] <- 0
    pm_blocked <- NextMethod()
    pm + (vulnerable - 1) * pm_blocked
}

Because both calls go through NextMethod() — the standard one and the vulnerability correction — a lower extension package’s contribution to Encounter or PredMort is preserved for every predator, blocked or not. The trick is that a bare NextMethod() forwards the current values of the method’s formal arguments as bound in this frame, not the values the generic was originally called with. So reassigning n <- vulnerable * n (or zeroing rows of pred_rate) before the second bare call is enough to recompute the integral with modified inputs through the full chain, with no direct call to mizer’s base rate function needed.

A NextMethod() pitfall worth knowing about

The obvious way to recompute with a modified input is to pass an override directly to NextMethod(), e.g. NextMethod(n = vulnerable * n). This looks like it should work — R does let you override a single argument this way — but testing surfaced a serious problem: once a generic has more than two formal arguments, passing an explicit named override to NextMethod() corrupts the matching of the other arguments. A minimal reproduction:

f <- function(params, n, n_pp, n_other, t = 0, ...) UseMethod("f")
f.default <- function(params, n, n_pp, n_other, t = 0, ...) {
    cat("default sees length(n_pp) =", length(n_pp), "\n")
}
f.foo <- function(params, n, n_pp, n_other, t = 0, ...) {
    NextMethod()               # fine
    NextMethod(n = n * 2)      # n_pp comes out wrong!
}

Calling this with a 2×3 matrix n and a length-5 vector n_pp prints the correct length(n_pp) = 5 for the first call, but length(n_pp) = 6 for the second — n_pp has silently been overwritten by (part of) the new n. This is why the two rate methods above never pass an argument to NextMethod(). Instead they reassign the formal in the local frame (n <- vulnerable * n) and then call NextMethod() bare: the modified value still propagates down the chain, but because no named argument is supplied, the matching of the remaining arguments is left intact. Reassigning-then-calling-bare gives you the composability of the chain and the modified input, with none of the argument-corruption.

Algae and detritus: two unstructured resource components

Algae and detritus are each registered as a scalar other component via setComponent() inside newReefParams():

params <- mizer::setComponent(
    params, "algae",
    initial_value = 1,
    dynamics_fun = "algae_dynamics",
    encounter_fun = "encounter_contribution",
    component_params = list(rho = rho_alg, capacity = ..., growth = ...))

params <- mizer::setComponent(
    params, "detritus",
    initial_value = 1,
    dynamics_fun = "detritus_dynamics",
    encounter_fun = "encounter_contribution",
    component_params = list(rho = rho_det, capacity = ..., ...))

Both share the same encounter_contribution() helper, which adds $\rho_i(w)\,B$ to species $i$’s encounter rate, where $B$ is the current biomass of the component and $\rho_i(w)$ is a species- and size-dependent encounter-rate coefficient stored in other_params(params)[[component]] – the same location setComponent()’s component_params argument writes to above, and what mizer::getComponent()/removeComponent() read from, so algae and detritus need no special-casing here:

encounter_contribution <- function(params, n_other, component, ...) {
    params@other_params[[component]]$rho * n_other[[component]]
}

rho is initialised in newReefParams() so that each species can reach feeding level f0 at maximum body size once its algae, detritus, and normal prey encounter are all accounted for.

Both components follow the same dynamical structure — production balanced against biomass-proportional consumption, solved analytically within each time step to avoid Euler-step instabilities:

$$\frac{dB}{dt} = P - c\,B \quad\Longrightarrow\quad B(t+dt) = B(t)\,e^{-c\,dt} + \frac{P}{c}\left(1-e^{-c\,dt}\right)$$

For algae, production is a fixed, literature-informed constant growth rate that is not retuned to match consumption – real algal primary production is not driven by grazer demand, so [tuneUR()]/[tuneUR_cc()] instead solve for the algae biomass that balances this fixed production against current consumption (see algae_consumption()’s documentation for the ecological rationale and citations). For detritus, production genuinely does depend on the rest of the system (fish egestion, senescence) plus an external flux, so [tuneUR()]/[tuneUR_cc()] instead solve for that external flux to balance a given detritus biomass against consumption. Both have getters/setters for inspecting and tuning the steady-state balance, e.g.:

detritus_lifetime(params)
#> [1] 3.17783e-13
algae_biomass(params)
#> [1] 2.171433e-10

getBiomass.mizerReefSim()

Standard getBiomass() only returns species biomasses. mizerReef’s method — following the same pattern as mizerShelf’s getBiomass.mizerShelf() — appends the algae and detritus biomass by reading them directly out of n_other:

getBiomass.mizerReefSim <- function(object, ...) {
    sim <- object
    b <- unclass(NextMethod())
    dimname_names <- names(dimnames(b))

    comp_mat <- matrix(unlist(sim@n_other),
        nrow = nrow(sim@n_other), ncol = ncol(sim@n_other))
    dimnames(comp_mat) <- dimnames(sim@n_other)

    b <- cbind(b, comp_mat[rownames(b), , drop = FALSE])
    names(dimnames(b)) <- dimname_names

    mizer::ArrayTimeBySpecies(b, value_name = "Biomass", units = "g",
                              params = sim@params)
}

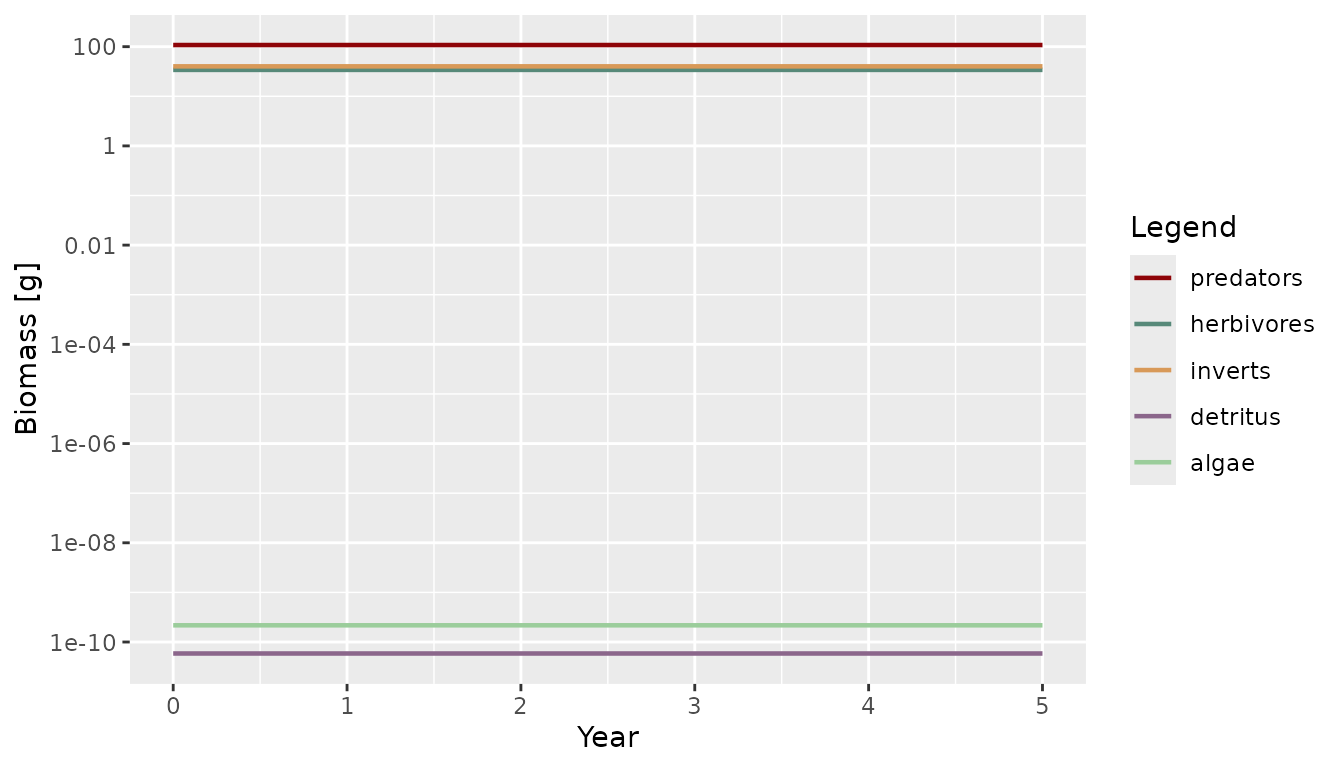

Because plotBiomass() calls getBiomass() internally, this single method is enough to make biomass plots include algae and detritus alongside fish species — and it works regardless of whether mizer or mizerReef was loaded first, since it is triggered by S3 dispatch on the object’s class rather than by masking mizer’s function.

sim <- project(params, t_max = 5, progress_bar = FALSE)
plotBiomass(sim)

Senescence and satiation: projectMort and projectFeedingLevel

Two of the four rate methods are the simple, purely additive/input-transform case that NextMethod() handles cleanly.

projectMort.mizerReef() adds senescence mortality, reefSenMort(), on top of the standard mortality:

projectMort.mizerReef <- function(params, n, n_pp, n_other, t = 0,
                                  f_mort, pred_mort, ...) {
    mort <- NextMethod()
    if (isTRUE(params@other_params$include_sen_mort)) {
        mort <- mort + reefSenMort(params, ...)
    }
    mort
}

projectFeedingLevel.mizerReef() reassigns params@intake_max to Inf for species without a satiation response before delegating — a formal argument reassigned inside a method body is correctly picked up by a bare NextMethod() call (unlike the explicit-override case described above):

projectFeedingLevel.mizerReef <- function(params, n, n_pp, n_other, t = 0,
                                          encounter, ...) {
    params@intake_max[params@species_params$satiation == FALSE] <- Inf
    fl <- NextMethod()
    fl[is.na(fl)] <- 0
    fl
}

removeSpecies.mizerReef()

Removing a species must also drop its row from the algae and detritus rho matrices, which live outside the standard mizer slots that removeSpecies.MizerParams() already knows how to trim:

removeSpecies.mizerReef <- function(params, species, ...) {
    keep <- !valid_species_arg(params, species, return.logical = TRUE)
    p <- NextMethod()
    p@other_params$algae$rho <-
        p@other_params$algae$rho[keep, , drop = FALSE]
    p@other_params$detritus$rho <-
        p@other_params$detritus$rho[keep, , drop = FALSE]
    p
}

p2 <- removeSpecies(params, "predators")
species_params(p2)$species
#> [1] "herbivores" "inverts"

Upgrading objects saved with older mizerReef versions

An earlier internal design of mizerReef 2.x (never publicly released) stored refuge, algae, and detritus parameters in three custom S4 slots (refuge_params, algae_params, detritus_params) rather than in other_params(). Since a dispatching extension’s data must live in other_params() rather than in new S4 slots (see the checklist in vignette("creating-extension-packages", package = "mizer")), those slots were removed from the class definition before release — which means an object saved with that design needs to be migrated before it can be used. upgrade.mizerReef() handles this automatically, and will also handle any future within-2.x layout changes the same way:

upgrade.mizerReef <- function(object, ...) {
    tryCatch({
        old_refuge <- .hasSlot(object, "refuge_params")
        old_algae  <- .hasSlot(object, "algae_params")
        old_det    <- .hasSlot(object, "detritus_params")
        if (old_refuge && is.null(object@other_params$refuge_params)) {
            object@other_params$refuge_params  <- slot(object, "refuge_params")
        }
        if (old_algae && is.null(object@other_params$algae)) {
            object@other_params$algae   <- slot(object, "algae_params")
        }
        if (old_det && is.null(object@other_params$detritus)) {
            object@other_params$detritus <- slot(object, "detritus_params")
        }
    }, error = function(e) NULL)
    object
}

The old S4 slots were literally named algae_params/detritus_params (.hasSlot()/slot() above read those slot names directly), which is a coincidental naming match with an unrelated, later bug: other_params$ algae_params/detritus_params was for a while also used internally as a second, non-canonical copy of the live algae/detritus component data, duplicating other_params$algae/detritus (the location mizer::setComponent()/getComponent() actually use). That duplication has since been removed – other_params$algae/detritus is the single storage location, which is also why the migration above now targets it directly rather than other_params$algae_params/detritus_params.

This method is idempotent and never touches the version stamp, per the upgrade contract described in vignette("creating-extension-packages", package = "mizer"): mizer’s own orchestrator (triggered by validParams(), which runs on essentially every entry point) calls it once and re-stamps the object afterwards.

How the pieces fit together in newReefParams()

newReefParams <- function(species_params, method, method_params, ...) {
    # Standard multispecies model
    params <- newMultispeciesParams(species_params, ...)

    # Predation refuge: species parameters + refuge profile
    params <- setRefuge(params, method = method, method_params = method_params, ...)
    params <- getRefuge(params, ...)

    # Algae and detritus: scalar dynamical components
    params <- setAlgaeParams(params, ...)
    params <- setDetritusParams(params, ...)
    # ... compute rho so each species reaches feeding level f0 ...
    params <- mizer::setComponent(params, "algae", ...,
                                  dynamics_fun = "algae_dynamics",
                                  encounter_fun = "encounter_contribution")
    params <- mizer::setComponent(params, "detritus", ...,
                                  dynamics_fun = "detritus_dynamics",
                                  encounter_fun = "encounter_contribution")

    # Senescence and external mortality parameters
    params <- setExtMortParams(params, ...)

    # Register the extension chain and promote to the mizerReef S4 class.
    # Rate overrides (Encounter, FeedingLevel, PredMort, Mort) are handled by
    # the project*.mizerReef methods shown above, not by setRateFunction(),
    # so they compose with other extension packages.
    params@extensions <- mizer::getRegisteredExtensions()
    params <- mizer::coerceToExtensionClass(params)
    params
}

The marker-class promotion happens last, after every other slot has been populated — exactly as vignette("creating-extension-packages", package = "mizer") recommends, so that no earlier step in construction accidentally dispatches to a reef-specific method on a not-yet-fully-built object.

Summary

mizerReef illustrates the following extension mechanisms working together:

1. .onLoad + registerExtension() — announces mizerReef to mizer’s extension chain as soon as the package is loaded.

2. S4 marker classes + S3 dispatch — mizerReef and mizerReefSim ensure that reef-specific methods (projectEncounter, projectFeedingLevel, projectPredMort, projectMort, getBiomass, removeSpecies) are dispatched automatically, with every method calling NextMethod() at least once so the standard mizer pipeline, and any other extension package stacked below mizerReef, keeps working.

3. setComponent() — algae and detritus are scalar dynamical variables whose biomass evolves each time step and whose contribution to the encounter rate is automatically included via a shared encounter_contribution() helper.

4. A multiplicative rate override, handled without a full rewrite — predation refuge cannot be expressed as a purely additive NextMethod() correction the way mizerShelf’s detritus and carrion biomass can. mizerReef instead calls NextMethod() twice — once with unmodified inputs for the composable standard result, and once more with vulnerability-modified inputs to get the correction — and combines the two by predator row, so both calls (and any extension package stacked below mizerReef) stay fully composable. This is a pattern worth reusing for any extension whose modification depends on a subset of predators or a transformed input, rather than a term added on top.

5. utils::upgrade() — migrates objects created with mizerReef versions that stored data in custom S4 slots rather than in other_params().

Together, these mechanisms let mizerReef add predation refuge, benthic resource coupling, and senescence mortality to any mizer model without modifying the mizer source code, and without the model’s behaviour depending on the order in which mizer and mizerReef happen to be loaded.
